TPO™ SERIES DRIVE ELECTRONICS
Integrated Power & Control for Custom Ultrasound Systems
TPO drive electronics provide the power, control, and integration capabilities needed for advanced ultrasound systems. Backed by Sonic Concepts’ in-house engineering and manufacturing expertise, TPO solutions support applications ranging from underwater telemetry and hydrophone communications to image-guided HIFU treatment systems.
TPO Series Drive Electronics
The Transducer Power Output (TPO) Series is part of Sonic Concepts’ turnkey ultrasound system offerings, providing flexible RF drive and control capabilities tailored to each customer application. Rather than standalone products, TPO configurations are integrated as part of complete custom-engineered solutions designed around your transducer, acoustic, and system requirements.
The TPO platform offers a scalable architecture that supports a wide range of research, development, and commercial ultrasound applications.
Available configurations can include:
- Single- or multi-element transducer support
- One to 16 RF drive channels
- Continuous or pulsed power operation
- Frequency ranges up to 10 MHz
- Acoustic beam steering and focal control algorithms
- Acoustic field dithering capabilities

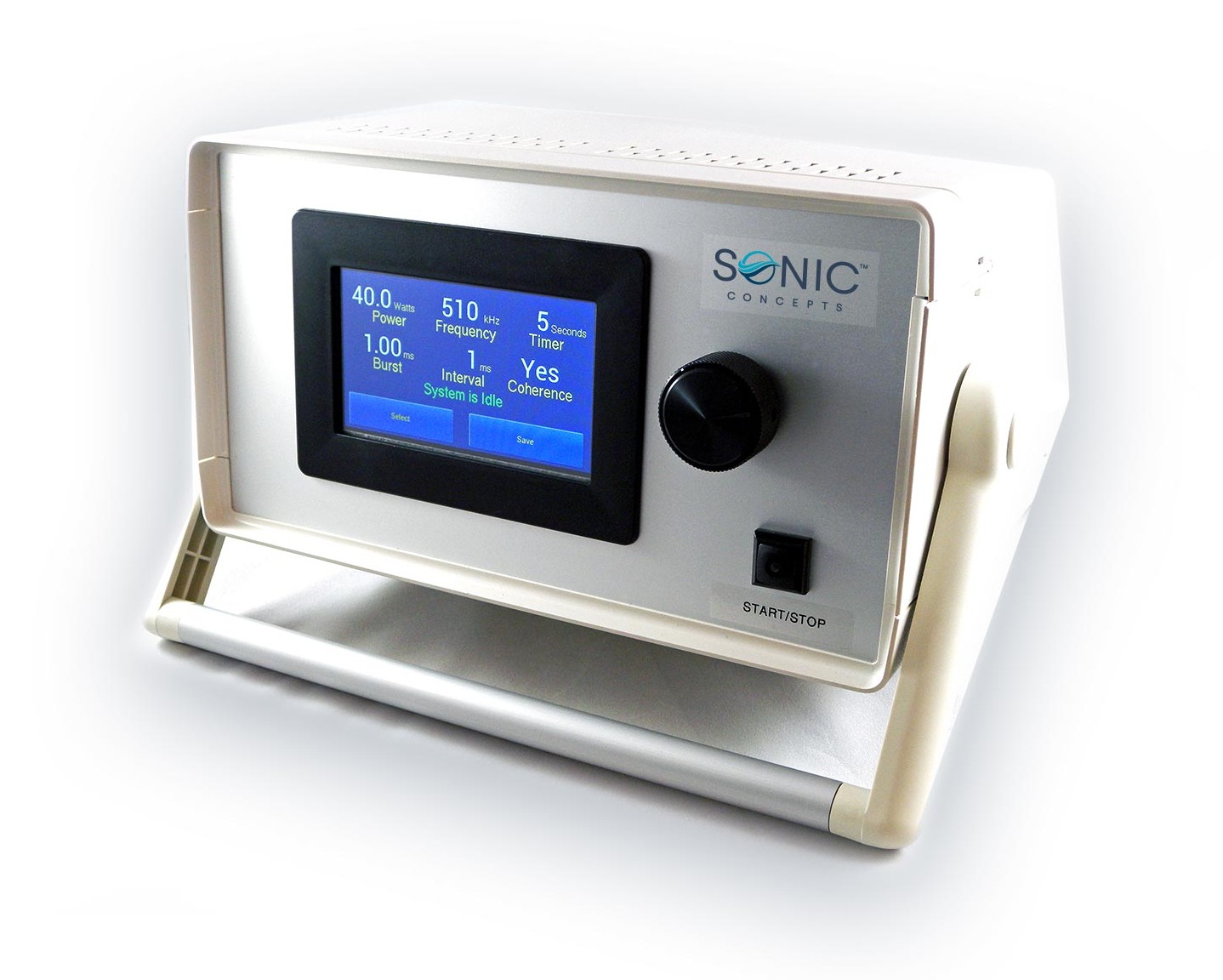

- Compact integrated packaging with touch-sensitive user interface
Each turnkey system is customized to meet the performance, workflow, and integration needs of the application, whether for therapeutic ultrasound, underwater acoustics, imaging, or other advanced ultrasonic technologies.
The Transducer Power Output Systems
Frequently requested systems are highlighted in bold
| Model | No. of CH’s | Peak Power Per Ch (Watts) | Peak Power Total (Watts) | Average Power Per Ch (Watts) | Average Power Total (Watts) | Frequency (MHz) |
|---|---|---|---|---|---|---|
| TPO-102 | 1 | 400 | 400 | 400 | 400 | .1 – 5 |
| TPO-103 | 2 | 100 | 200 | 100 | 200 | .1 – 5 |
| TPO-105 | 4 | 100 | 400 | 100 | 400 | .1 – 5 |
| TPO-200 | 1 | 80 | 80 | 80 | 80 | .1 – 10 |
| TPO-201 | 2 | 40 | 80 | 40 | 80 | .1 – 10 |
| TPO-203 | 4 | 20 | 80 | 20 | 80 | .1 – 10 |
| TPO-204 | 8 | 20 | 160 | 20 | 160 | .1 – 10 |
| TPO-205 | 16 | 20 | 320 | 20 | 320 | .1 – 10 |
| TPO-500 | 1 | 1600 | 432 | 432 | 432 | .1 – 5 |
| TPO-501 | 2 | 800 | 1600 | 216 | 432 | .1 – 5 |
| TPO-503 | 4 | 400 | 1600 | 108 | 432 | .1 – 5 |
| TPO-504 | 8 | 200 | 1600 | 54 | 432 | .1 – 5 |
| TPO-505 | 16 | 200 | 3200 | 54 | 864 | .1 – 5 |
| TPO-506 | 32 | 200 | 6400 | 32 | 1024 | .1 – 5 |
| TPO-507 | 64 | 200 | 12800 | 32 | 2048 | .1 – 5 |
| TPO-508 | 128 | 200 | 25600 | 16 | 2048 | .1 – 5 |
| TPO-509 | 256 | 200 | 51200 | 8 | 2048 | .1 – 5 |
| TPO-510 | 512 | 200 | 102400 | 4 | 2048 | .1 – 5 |
| TPO-511 | 1024 | 3.75 | 3840 | 1 | 1024 | .1 – 5 |
*Note: The peak power rating reflects maximum achievable output at optimal frequencies, with actual power delivery varying across the frequency range.
Flexible Configuration Options
The TPO architecture allows Sonic Concepts engineers to configure and optimize system electronics for specific customer requirements.
Available options may include:
- Multi-channel synchronization and phase control
- Custom software interfaces and control schemes
- Integrated monitoring and safety features
- Application-specific power and frequency optimization
- System integration with transducers, hydrophones, and ancillary equipment
By combining proven electronics platforms with deep acoustics and ultrasound expertise, Sonic Concepts delivers complete, application-focused solutions rather than off-the-shelf instrumentation.
Work With Sonic Concepts
Our engineering team works directly with customers to develop integrated ultrasound systems tailored to their technical and operational goals.
Contact Sonic Concepts to discuss your application and determine the optimal system configuration for your needs.
